Habotest HT206A Digital Clamp Meter

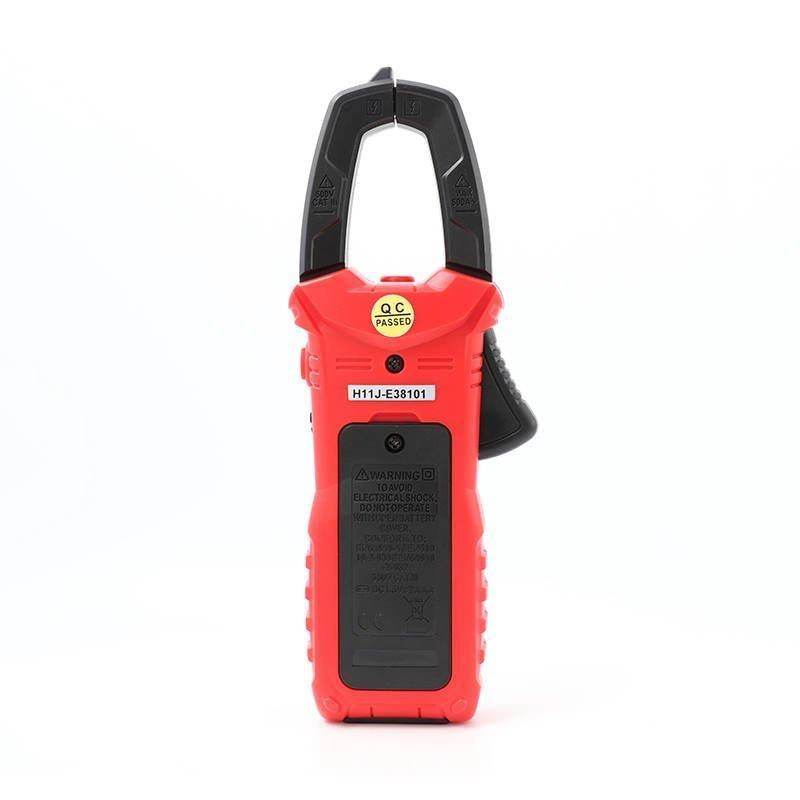

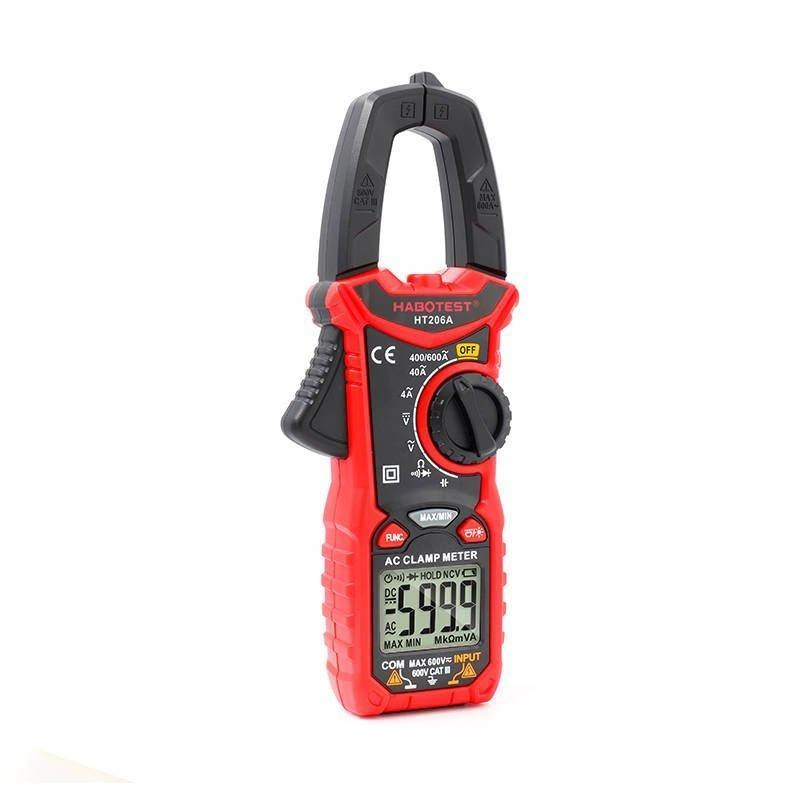

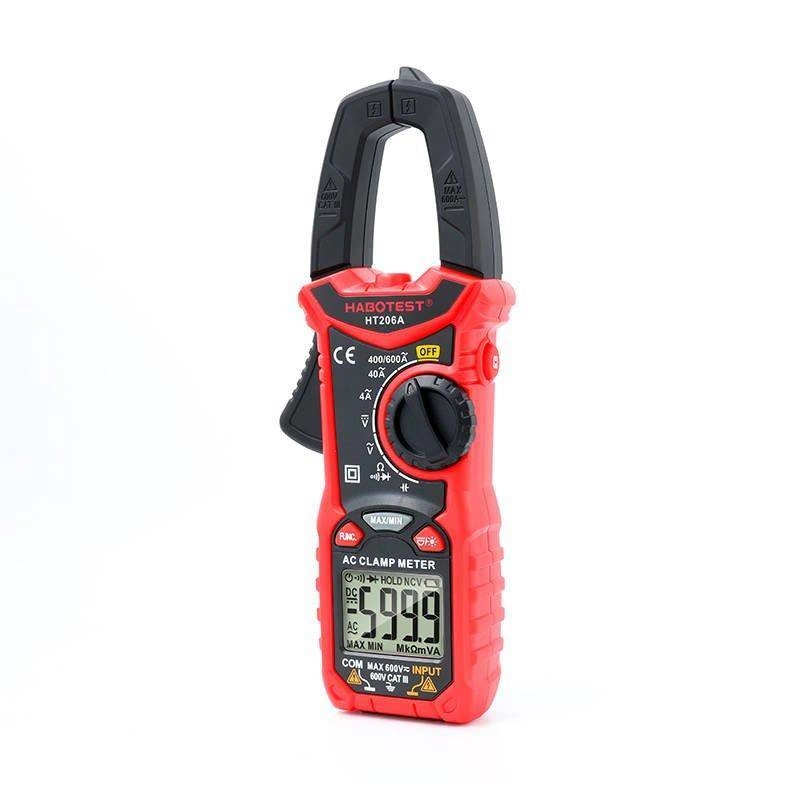

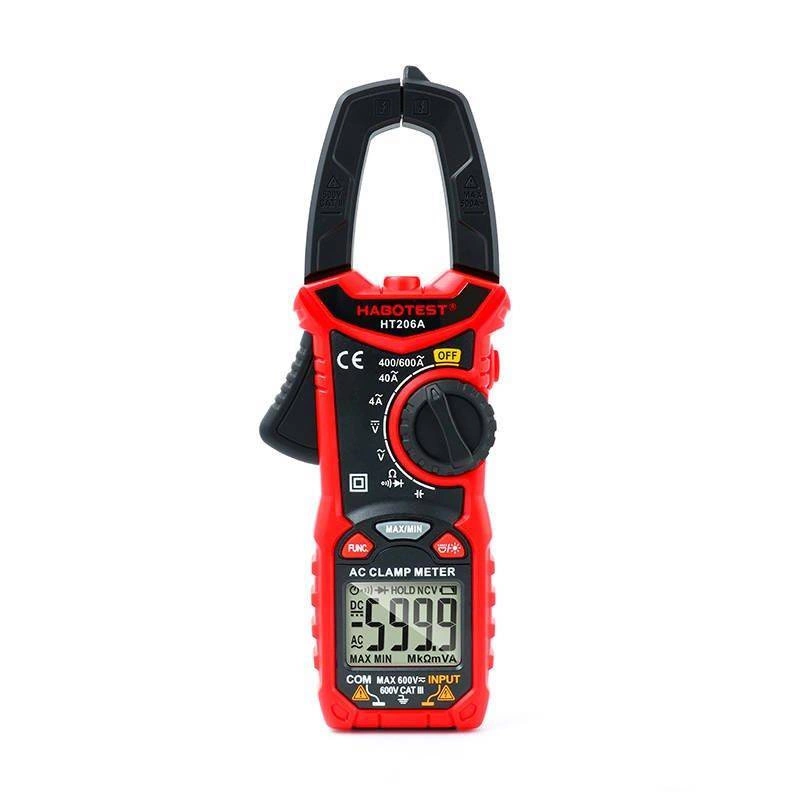

Habotest HT206A digital clamp meter
The functional clamp meter by Habotest guarantees precise measurement, the results of which are displayed on an easy-to-read, backlit LCD screen. The size of the jaws is up to 26mm, which allows for comfortable operation of the device. The HT206A is also equipped with a flashlight, which makes it easier to work in dark rooms.
Measures various parameters
With this universal meter you can check the value of many different parameters. Using the HT206A, you can measure AC voltage, AC current and resistance, among other things. But that's not all! You can also easily check continuity and true RMS.
Clear, practical display
The meter is equipped with an LCD display with backlight in 2 colors. You will find on it not only the measurement results, but also for example a low battery indicator. This way you can comfortably use the HT206A. What's more, the backlight will turn orange when the measured voltage exceeds 80V and the measured current exceeds 3A.
Easy to use in all conditions
The built-in flashlight provides bright illumination, so you can work even in dark places with ease. The operation of the device is also facilitated by intuitive buttons, with which, among other things, you can quickly and conveniently select the function, use the MAX/MIN measurement option, as well as turn the light on or off. An additional advantage of the meter is the option of storing data.
|DC voltage measurement range||400mV/4V/40V/400V/600V ±(0,5%+5)||600mV/6V/60V/600V ±(0,5%+5)|
|AC voltage measurement range||4V/40V/400V/600V ±(1.0%+5)||6V/60V/600V ±(0.8%+5)|
|DC current measurement range||Not applicable||60A/600A ±(2.5%+5)|
|AC current measurement range||4A/40A/600A ±(2,5%+8)||60A/600A ±(2,5%+5)|
|Resistance measurement range||400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+5)||600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+5)|
|Capacitance measurement range||4nF/40nF/400nF/4μF/40μF/400μF/4mF ±(4.0%+5)||10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF ±(4.0%+3)|
|Frequency measurement range||Not applicable||10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3)|
|Duty measurement range||Not applicable||1%-99% ±(3,0%+3)|
|Temperature measurement range||Not applicable||-40°C-1000°C ±(1.0%+2);
|Continuity||Yes, sound and light alarm||Yes, sound and light alarm|
|NCV||No||Yes, audible and light alarm|
|Low Battery Indicator||Yes||Yes|
|Auto power off||Yes||Yes|
|Power supply||2x AAA 1.5V batteries (included)||2x AAA 1.5V batteries (included)|
|Weight||About 260g||About 260g|
|Size of jaws||∅26x44mm||∅26x44mm|
|Safety||EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V||EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V|
